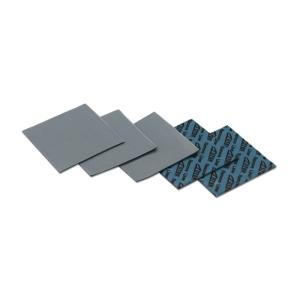

Premium Soft 3.0W Thermal Conductivity Silicone Thermal Pad With Adhesive For Advanced Cooling Needs
Ziitek thermal conductive interface materials are widely recognized and trusted by users and can meet continuously developing economic and social needs.Ziitek provide thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products and so on, for various applications.
The TIF®180-30-11E Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features
> Good thermal conductive: 3.0W/mK
> Naturally tacky needing no further adhesive coating
> Available in varies thickness
> Soft and compressible for low stress applications
> RoHS compliant
> UL recognized
Applications
> PCB/CPU/LED
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Routers
|
Typical Properties of TIF®180-30-11E Series
|
||
|
Color
|
Gray | Visual |
|
Construction & Compostion
|
Ceramic filled silicone elastomer |
****** |
| Thickness range | 0.02"(0.5mm)~0.200"(5.0mm) | ASTM D374 |
|
Specific Gravity
|
3.0 g/cc | ASTM D297 |
|
Hardness
|
35 Shore 00 | ASTM 2240 |
|
Continuos Use Temp
|
-45 to 200℃ | ****** |
|
Dielectric Breakdown Voltage
|
>5500 VAC | ASTM D149 |
|
Dielectric Constant
|
5.0 MHz | ASTM D150 |
|
Volume Resistivity
|
1.0X1012 Ohm-meter | ASTM D257 |
|
Fire rating
|
94 V0 | equivalent UL |
| Outgassing | 0.40% | ASTM E595 |
|
Thermal conductivity
|
3.0W/m-K | ASTM D5470 |
Products specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individua de cut shapes and custom thickness can be supplied. Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
